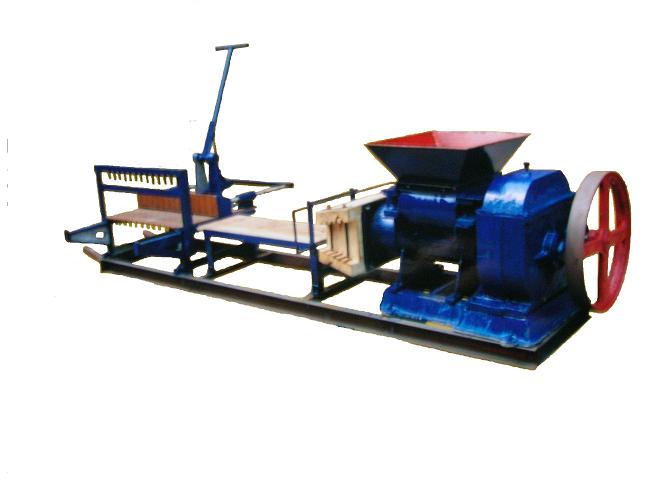

Brick adobe producing line

  Usement: The machine is suitable for making the Clay brick adobe for house .

Range of materials :clay, blackland , mixingclay .



Constructure:

Mixer/Mud pie maker, mud pie cutter and Mud Adobe slicer machine ,water pump.



Installment: This line is installed on the falsework(wooden/iron broad), also coud be installed on the concrete foundation .

The size of area:1200*800*12000 mm.

Packing wooden box:1000*1000*750mm and 1000*800*600

Note:30 sets/20’Container.



Main Data

1.      weight:508kg .

2.      Capacity:20000 – 24000 pc/8hrs.

3.      Matching Power:12-15 Hp diesel engine ( 7.5 – 11kw motor) .



Note

Rearding to the other capacity,we also could manufacture it according to the requires of the user .

The data for Mud pie Maker

<TD style="BORDER-RIGHT: windowtext 1pt solid; PADDING-RIGHT: 5.4pt; BORDER-TOP: windowtext 1pt solid; PADDING-LEFT: 5.4pt; PADDING-BOTTOM: 0cm; BORDER-LEFT: #ebe9ed; WIDTH: 83.25pt; PADDING-TOP: 0cm; BORDER-BOTTOM: windowtext 1pt solid; BACKGROUND-COLOR: transparent; mso-border-alt: solid windowtext .5pt; mso-border-left-alt: solid windowtext .5pt

Item
