Brief Introduction

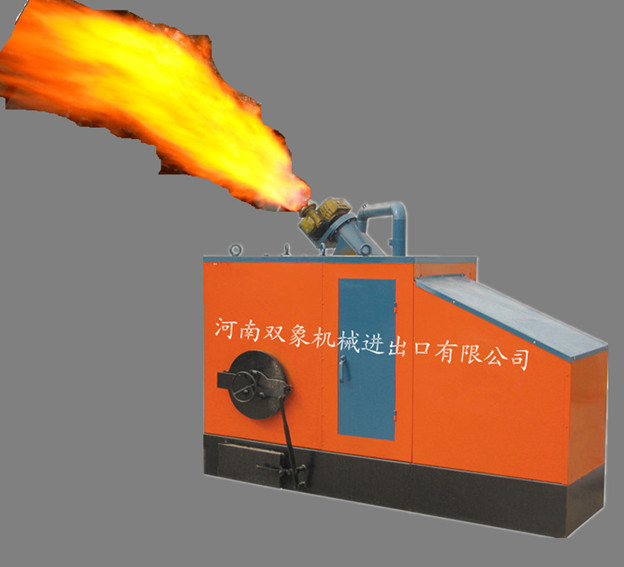

DRT Series biomass gas burner was developed according to the characteristics of biomass fuels and combined with characteristics of Chinese fuel market.
Advantages
The series burner adopts the latest scientific research, which is also one kind biomass particles forming fuels equipment of using the most mature combustion technology and independent innovation. This burner has the features of reasonable structure, automatic feeding, full combustion, high thermal efficiency, nonpollution, low emission, compact structure, easy to install, small space usage, low running costs and other characteristics. It isthe best succedaneum of electricity, fuel, gas, coal-fired boiler combustion equipment .
Application
The series burners are applied widely and its output id sufficient. The burner is widely used in boilers (oil / gas boiler fixed grate fired boilers, coal boiler, pulverized coal), industrial kilns, furnaces, drying equipment, spraying production line and other supporting energy saving.
Features
Applicable fuel is wide Pure wood, pure bamboo shavings, pure shell particles or blocks (stick) fuel. Strong firepower adequate effort, can completely replace the fuel (gas) burner
Easy operation, high degree of automation:Using the same design philosophy, system control design, humanized operation design with natural gas burner plume,automatic feeding, simple operation, can be operated by a single person.
3. Convenient load adjustment:Automatic fire size conversion, Load adjustment range: 30 ~ 130%
4. Low running costs:Can save 30% to 60% operating costs compared with gas and oil.
5. Energy saving, Efficient Economy and high thermal efficiency: Semigasification combustion and air distribution design of Gache line swirl; split phase combustion; the combustion rate is more than 93%.
6. Low carbon and environmental friendly Low emissions of sulfur and nitrogen, zero emissions of carbon dioxide, dust removal equipment configuration,soot emissions up to GB132271Claim
7. Quick and convenient installation.
Main technical parameter
|
Model |
DRT-0.45 |
DRT-0.9 |
DRT-1.8 |
DRT-3.6 |
DRT-5.4 |
|
rated heating capacity(MW) |
0.45 |
0.9 |
1.8 |
3.6 |
5.4 |
|
Firepower accommodation mode |
single |
double |
double |
double |
double |
|
Load adjustment range |
30~130% |
|
Applied fuel |
category |
Pure wood , bamboo shavings,shell |
|
calorific value |
3800~4200kcal/kg |
|
specification |
pellet Dia 8~10 bulk:32กม32กม30~60 stick: Dia30กม30~60 |
|
consumption of fuel(kg) |
30~100 |
60~120 |
120~400 |
240~800 |
360~1200 |
|
Dimension(L*W*H)
mm |
1950*1250*
1250 |
2850*1250*
1390 |
2950*1480*
1390 |
3500*1580*
1490 |
3700*1800*
1650 |
|
Boiler can be equipped with |
steam |
0.5t/h |
1t/h |
2t/h |
4t/h |
6t/h |
|
Hot water |
0.35MW |
0.7MW |
1.4MW |
2.8MW |
4.2MW | |
