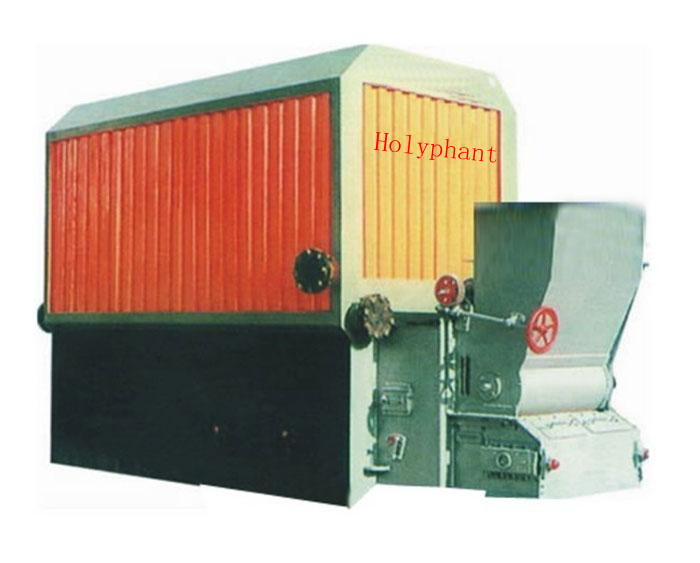

Intriduction
Organic heat transfer material heater boiler is a new generation supplying heat product, which can obtained the temperature below 350C at a lower working pressure. The boiler, safe and reliable and instead of steam boilers, has the technical characteristics of low pressure and high temperature, widely applied in many field.
Features
1. DELHI series BMF organic heat carrier boiler with biomass briquettes (BWF)as fuel instead of coal, friendly environmental and non-pollution.
1) Using our unique BMF combustion technology, full fuel combustion, high utilization;
2) Design special furnace arch. according to the characteristics of biomass fuel. Front and rear arch maches with each other. The unique secondary oxygen device to increase the rate of fuel burn out and solve the problem of black smoke combustion of biomass fuels;
3)Dust of the chamber outlet separates inertially, which effectively reduce exhaust gas dust concentration, and reduce wear and tear on the rear of the heating surface;
2. Accurate temperature control, being able to meet different customer requirement.
3. Perfect operational control and safety monitoring device;easy to operate, safe and reliable.
4. Liquid heat transport; closed loop;Furnace using thicker quality insulation materials keep warm, low heat loss.
5. Special furnace heating surface layout, no coke, better adaptability.
Main technical parameter
|
Model |
YLW-
1800T |
YLW-
2400T |
YLW-
3000T |
YLW-
3500T |
YLW-
4600T |
YLW-
6000T |
YLW-
7000T |
YLW-
10000T |
YLW-
14000T |
|
Rated thermal power (KW) |
1800 |
2400 |
3000 |
3500 |
4600 |
6000 |
7000 |
10000 |
14000 |
|
Thermal efficiency (%) |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
|
Working pressure (MPa) |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
Max. Temperature of medium (°C) |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
320 |
|
Oil volume (m3) |
2.8 |
3.5 |
4.85 |
5.4 |
6.8 |
7.9 |
8.8 |
14.8 |
16.9 |
|
Circulation oil volume (m3/h) |
165 |
165 |
165 |
165 |
165 |
165 |
165 |
165 |
165 |
|
Piping connection diameter (mm) |
165 |
200 |
225 |
280 |
300 |
340 |
400 |
600 |
800 |
|
Total system installed capacity (kw) |
75 |
85 |
85 |
130 |
150 |
180 |
205 |
180 |
430 |
|
Dimension |
L |
mm |
5980 |
6200 |
7200 |
7200 |
8450 |
8734 |
8734 |
10400 |
10400 |
|
H |
4900 |
5320 |
5000 |
5170 |
4980 |
5474 |
5487 |
5490 |
5880 |
|
A |
2840 |
2840 |
2840 |
2840 |
3760 |
4250 |
4250 |
4430 |
4670 |
|
h |
3200 |
3276 |
3250 |
3420 |
3980 |
3474 |
3487 |
3390 |
3580 |
|
Total weigh (kg) |
22000 |
25000 |
29500 |
32000 |
45000 |
64615 |
66424 |
98994 |
176342 | |
