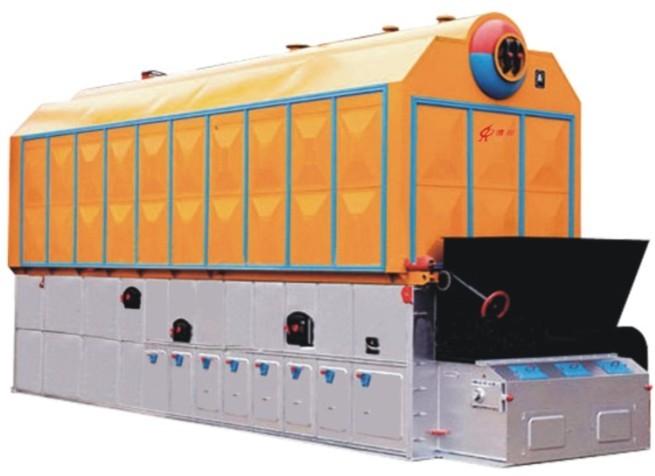

Introduction of boiler
This series steam boiler is suitable for small and medium enterprises, institutions, schools, guesthouse, hotel, bath center and residential areas, providing heating and hot water.
Advantages of boiler
1. Using our unique BMF combustion technology, full fuel combustion, high utilization;
2. Design special furnace arch according to the characteristics of biomass fuel. The unique second oxygen device increases the burn out rate ;
3. Retaining bore outlet dust separate inertially, effectively reduce exhaust gas dust concentration, and reduce wear and tear on the rear of the heating surface;
4. Furnace using thicker quality insulation materials insulation, low heat loss;
5. Boiler was divided into two parts assembly factory, easy installation;
6. Special furnace heating surface layout, and no coke, wide fuel adaptability.
Main technical parameter
|
Model
Item |
Rated evaporation
t/h |
Thermal efficiency
% |
Steam temperature
¡ãC |
Dimension
mm |
Weight
T |
|
SZL8-1.25-T |
8.0 |
82 |
194 |
7000*3300*3550 |
92.0 |
|
SZL8-1.6-T |
8.0 |
82 |
204 |
7000*3300*3550 |
93.8 |
|
SZL10-1.25-T |
10.0 |
82 |
194 |
7800*3300*3550 |
94.5 |
|
SZL10-1.6-T |
10.0 |
82 |
204 |
7800*3300*3550 |
95.8 |
|
SZL10-2.5-T |
10.0 |
82 |
226 |
7800*3300*3550 |
97.0 |
|
SZL15-1.25-T |
15.0 |
82 |
194 |
9100*3320*3525 |
105 |
|
SZL15-1.6-T |
15.0 |
82 |
204 |
9100*3320*3525 |
108.5 |
|
SZL15-2.5-T |
15.0 |
82 |
226 |
9100*3320*3525 |
112.8 |
|
SZL20-1.25-T |
20.0 |
82 |
194 |
11500*3400*3525 |
133 |
|
SZL20-1.6-T |
20.0 |
82 |
204 |
11500*3400*3525 |
138.2 |
|
SZL20-2.5-T |
20.0 |
82 |
226 |
11500*3400*3525 |
142.8 | |
