Brief Introduction

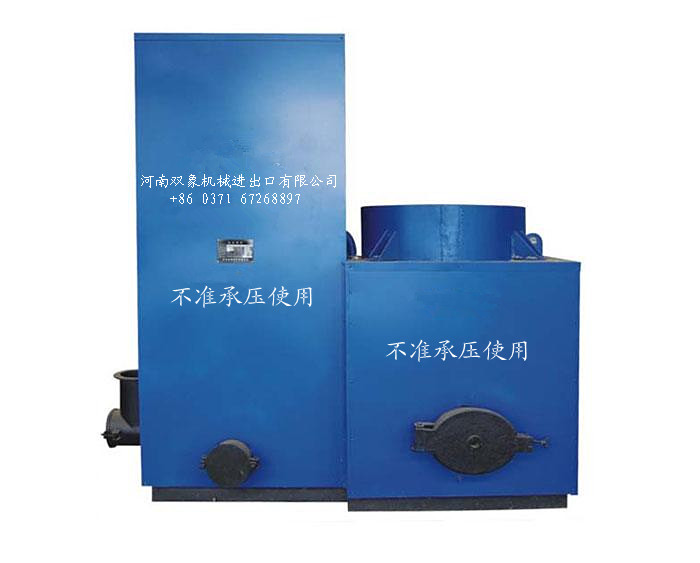

The series normal pressure small hot water boiler is suitable for small enterprise, offices, schools, guesthouse,hotels, bath center, etc. providing heating and hot water.
Features
1. Making the best of biomass fuel characteristics of high volatile components; adopting the technology of double-deck fire grate counter combustion; full fuel combustion; high utilization;
2. Boiler adopts the design of multi-return stroke; novel structure; long smoke process; larger heating area; low exhaust gas temperature; high thermal efficiency;
3. Furnace adopts thicker thermal insulation material to keep warm; small heat loss;
4. Flue gas flow design is reasonable; the original emission concentration of smoke of boiler is low;
5. Suitable for biomass fuel of wood, shell with difficult coke, low ash
Main technical parameter
|
Model |
CLHG0.23-85/60-T |
CLHG0.35-85/60-T |
CLHG0.7-85/60-T |
|
Thermal power (MW) |
0.23 |
0.35 |
0.7 |
|
Thermal efficiency (%) |
80 |
80 |
80 |
|
Outlet temperature(°C) |
85 |
85 |
85 |
|
Inlet temperature°C |
60 |
60 |
60 |
|
Heating area(m2) |
2300 |
3500 |
7000 |
|
Hot water output (t/h) |
5 |
7.5 |
15 |
|
Dimension (mm) |
2700*1290*2200 |
3200*1500*2700 | <TD style="BORDER-BOTTOM: rgb(204,204,204) 0.75pt solid; BORDER-LEFT: medium none; PADDING-BOTTOM: 0.75pt; PADDING-LEFT: 0.75pt; WIDTH: 111.25pt; PADDING-RIGHT: 0.75pt; BACKGROUND: rgb(230,230,230); BORDER-TOP: medium none; BORDER-RIGHT: rgb(204,204,204) 0.75pt solid; PADDING-TOP: 0.75pt;
|
