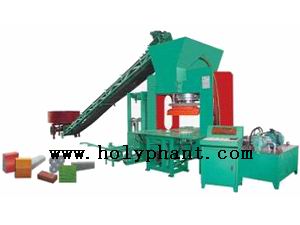

Introduction about road/square brick machine
Combined with double layers feeding, vibrating, pressing, height and density double direction control, which make finished product harder, uniform, small area, easy installation and operation, fast forming speed, low damage rate, easy maintain etc. Low investment and high efficiency is the best advantage. Brick machine can produce all kinds of concrete products such as non-burning brick, multi holes brick, hollow block, color road brick, lawn brick, tracery wall brick, water conservancy slope protection, kerb stone etc, finished product can be widely used in walk-street, garden, water conservancy project, square and housing district.
This machine can be added industrial waste such as fly ash, mine slag,coal slag etc into raw materials, changing waste into treasure, beautify the circumstance, can match semi-automatic or fully automatic production line according to different requirement.
Main data:
Type |
YSDG208 |
YSD250 |
YSDG700 |
Forming pressure(t) |
208 |
250 |
700 |
Capacity |
Kerb stone
(1*0.3*0.2m) |
1pcs/pallet
100pcs/h |
1pcs/pallet
150pcs/h |
2pcs/pallet
300pcs/h |
Road brick
(0.25*0.25*0.04m) |
4pcs/pallet
700pcs/h |
4pcs/pallet
1000pcs/h |
8pcs/pallet
2000pcs/h |
Slope protection
brick (opposite side
500mm hexagonal) |
2pcs/pallet
400pcs/h |
2pcs/pallet
600pcs/h |
4pcs/pallet
1000pcs/h |
Main power(kw) |
5.5+2.2 |
11 |
15 |
oil tank volume(liter) |
220 |
|
|
dimension(m) |
1.65*2.0*2.6 |
2*1.3*2.15 |
|
weight (t) |
4 |
5 |
9 | |
