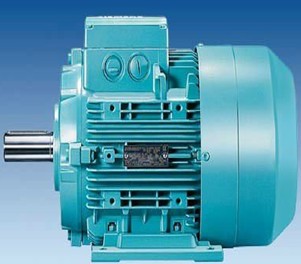

YX3 Series High Efficiency Motor Detailed Product Description

As our country highlight promotion production YX3 series high efficiency three phase motors is high efficiency energy-saving motor.Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard,according to IE2/EFF1 efficiency index of IEC standard.Our production advance in domestic and reached advanced level in international.We are on top of the name list that can get the CHINA certification for energy conservation product.

YX3 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YX3 series electric motors are in conformity with IEC standard.

YX3 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors.

1:Type:YX3-100L-2~YX3-315S-6

2:Frame size:H100-H315

3:Connection ways:Start-connection for 3KW or less while delta-connection for 4KW or more

4: Duty: continuous(S1)

5: Insulation class:F

6: Protection class:IP55

7: Cooling method:ICO141

8: Ambient temperature:-15-40

9: Fixture Altitude:not exceeding 1000m above sea level.

10: Usage: it is widely used for most applications.
